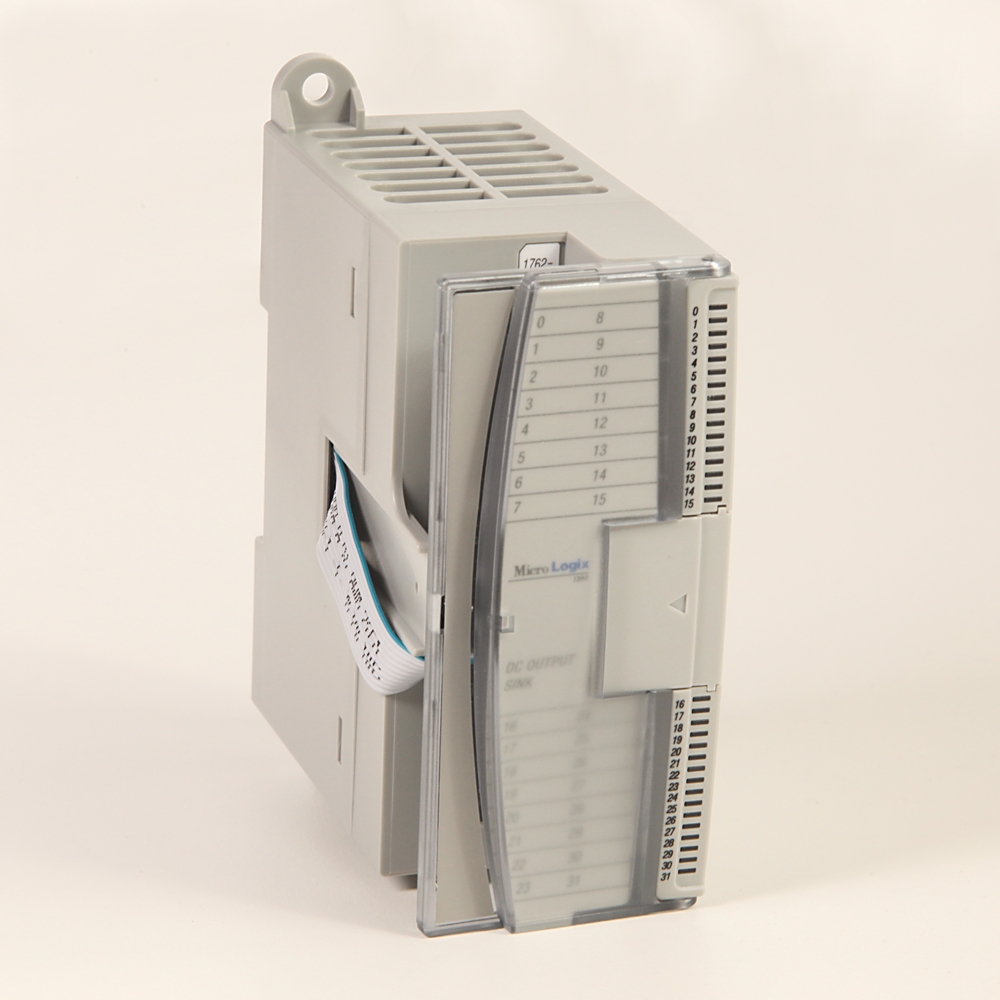

Technical Specifications
Electrical
|
Number of digital outputs
|
32
|
|
Suitable for safety functions
|
No
|
|
Digital inputs configurable
|
No
|
|
Digital outputs configurable
|
No
|
|
Type of output voltage
|
DC
|
|
Type of digital output
|
Relay
|
|
Type of electric connection
|
Screw connection
|
|
Heat dissipation, max
|
3.4 W @ 26.4 DC
|
|
Continuous current per common, max
|
2.0 A @ 60 °C (140 °F)
|
|
Continuous current per module, max
|
4.0 A @ 60 °C (140 °F)
|
|
Continuous current per point, max
|
0.5 A @ 60 °C (140 °F)
|
|
Bus current draw, max
|
175 mA @ 5V DC
|
|
Signal delay, resistive load
|
On delay: 0.5 ms Off delay: 4.0 ms
|
|
Power supply distance rating
|
6 (The module may not be more than 6 modules away from the power supply.)
|
|
Isolated groups
|
Group 1: Outputs 0...15, Group 2: Outputs 16...31 (internally, connected to common)
|
|
Surge current, max
|
2.0 A (Repeatability is once every 2 s at 60 °C (140 °F) for 10 ms.)
|
|
Output group to backplane isolation
|
Verified by one of the following dielectric tests: 1200V AC for 2 s or 1697V DC for 2 s, 75V DC working voltage (IEC Class 2 reinforced insulation)
|
|
Output group to output group isolation
|
Verified by one of the following dielectric tests: 1200V AC for 2 s or 1697V DC for 2 s, 75V DC working voltage (IEC Class 2 reinforced insulation)
|
|
Redundancy
|
No
|
|
Short-circuit protection, outputs available
|
No
|
Mechanical
|
Width
|
40.4 mm
|
|
Height
|
90 mm
|
|
Depth
|
87 mm
|
|
Weight
|
200 g
|
|
Shock
|
Operating: 30G panel mounted, 3 pulses per axis Relay Operation: 7G
|
|
Vibration
|
Operating: 10…500 Hz, 5G, 0.030 in. max. peak-to-peak, 2 hours per axis Relay Operation: 1.5G
|
Output Specifications
|
On-state voltage drop, max
|
0.5 A @ 0.3V DC
|
|
Off-state leakage current, max
|
0.1 mA @ 26.4V DC
|
Input Specifications
|
Voltage category
|
24V DC source
|
|
On-state current, min
|
1 mA
|
|
Operating voltage
|
10.2...26.4V DC
|
Environmental
|
ESD immunity
|
EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect
|
|
Conducted RF immunity
|
IEC61000-4-6: 10V, 0.15...80 MHz
|
|
EFT/B immunity
|
IEC61000-4-4: 2 kV, 5 kHz on signal ports
|
|
Hazardous environment class
|
Hazardous Location, Class I, Division 2 Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213, ANSI/ISA-12.12.01)
|
|
Operating temperature
|
-20 to 65 °C
|
|
Surge transient immunity
|
IEC61000-4-5: 2 kV common mode, 1 kV differential mode
|
|
Radiated RF immunity
|
IEC61000-4-3: 10V/m, 80...2700 MHz, 80% amplitude modulation
|
|
Altitude
|
2000 m
|
|
Storage temperature, min
|
-40 °C
|
|
Radiated and conducted emissions
|
EN50081-2: Class A
|
|
Operating humidity
|
5...95% noncondensing
|
|
