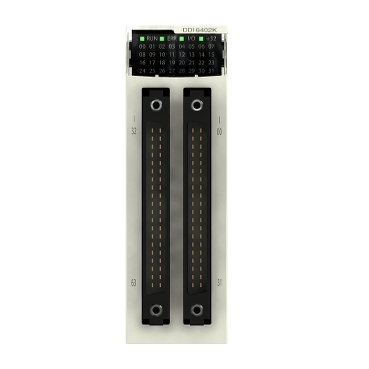

This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 64 input channels and it is supplied with 24V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It has an external fuse per group of channel 0.5A fast blow and without reverse polarity protection type. This product is IP20 rated and offers 511375 hours of MTBF. This discrete module has a weight of 0.145kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with two 40-way connectors. The product must be installed on the rack and fixed with 2 screws. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
|
|
Specifications |
|
range of product |
Modicon X80 |
Product or component type |
Discrete input module |
Discrete input number |
64 |
Discrete input type |
Isolated |
Input type |
Current sink (logic positive) |
Discrete input voltage |
24 V DC, discrete input logic: positive |
Discrete input current |
0.6 mA |
Complementary |
Sensor power supply |
19...30 V |
Input impedance |
40000 Ohm |
Insulation resistance |
> 10 MOhm 500 V DC |
Power dissipation in W |
4.3 W |
DC typical response time |
4 ms |
DC maximum response time |
7 ms |
Paralleling of inputs |
No |
Typical current consumption |
160 mA at 3.3 V DC |
MTBF reliability |
510000 H |
Protection type |
1 external fuse per group of channel0.5 A fast blow ,/ without reverse polarity protection |
Voltage detection threshold |
< 14 V DC sensor fault ,/ > 18 V DC sensor OK |
Status LED |
1 LED (green) +32 channels indicator / 1 LED (green) module operating (RUN) ,/ 1 LED per channel (green) channel diagnostic ,/ 1 LED (red) module error (ERR) ,/ 1 LED (red) module I/O . |
Net weight |
0.145 kg |
Environment |
IP degree of protection |
IP20 |
Directives |
2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
Dielectric strength |
1500 V AC at 50/60 Hz 1 minute, primary/secondary , * 500 V DC 1 minute, between group of channels |
Vibration resistance |
3 gn |
Shock resistance |
30 gn |
Ambient air temperature for storage |
-40…85 °C |
Ambient air temperature for operation |
0…60 °C |
Relative humidity |
5…95 % at 55 °C without condensation |
Operating altitude |
0...2000 m ,2000...5000 m with derating factor |
Packing Units |
Unit Type of Package 1 |
Db |
Number of Units in Package 1 |
1 |
Package 1 Height |
5.481 cm |
Package 1 Width |
11.199 cm |
Package 1 Length |
11.666 cm |
Package 1 Weight |
190.0 g |
Unit Type of Package 2 |
S02 |
Number of Units in Package 2 |
15 |
Package 2 Height |
15.0 cm |
Package 2 Width |
30.0 cm |
Package 2 Length |
40.0 cm |
Package 2 Weight |
3.481 kg |
|
