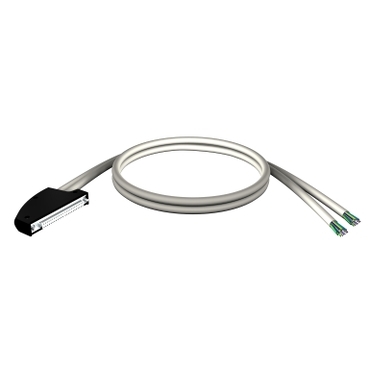

| This preassembled cordset is part of the Modicon X80 modules. It is compatible with 32 channels modules. It enables the connection between the I/O of modules with 40-way connectors and the sensors, preactuators. Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC). Modicon X80 provides a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. |
.
Main
| Range of product |
Modicon X80 |
| Accessory / separate part type |
Preformed cordset |
| Accessory / separate part designation |
Preformed cordset with one end with flying leads |
| Accessory / separate part destination |
For I/O module with 40-way connectors |
| Number of cables |
2 |
| Electrical connection |
1 connector 40 ways
2 ends with color-coded flying leads conforming to DIN 47100 |
| Cable length |
3 m |
Complementary
| Total number of wires |
40 |
| Wire section |
0.324 mm² |
| AWG gauge |
AWG 22 |
| Net weight |
0.9 kg |
Packing Units
| Unit Type of Package 1 |
Db |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5 cm |
| Package 1 Width |
27 cm |
| Package 1 Length |
27 cm |
| Package 1 Weight |
889 g |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
15 cm |
| Package 2 Width |
30 cm |
| Package 2 Length |
40 cm |
| Package 2 Weight |
5.684 kg |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
288 |
| Package 3 Height |
110 cm |
| Package 3 Width |
80 cm |
| Package 3 Length |
120 cm |
| Package 3 Weight |
284.83 kg |
|
|
