Product Details

Full Description:

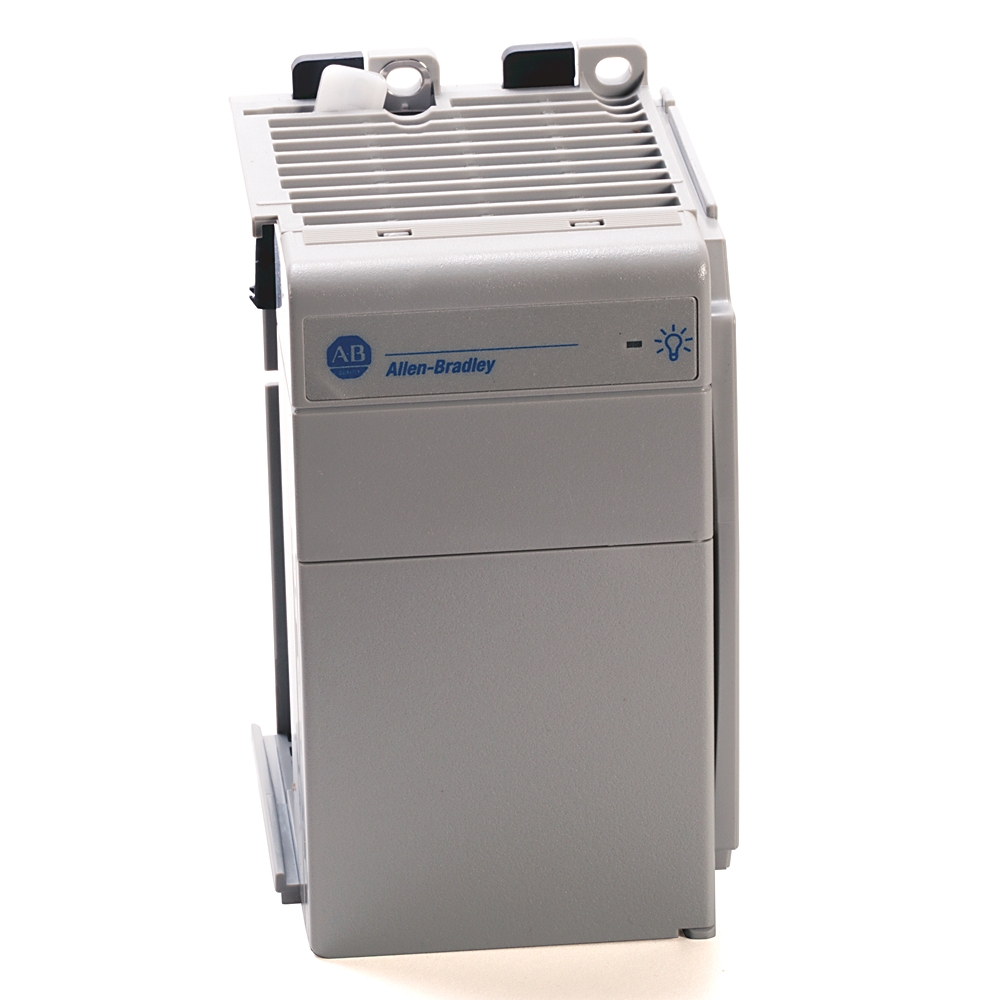

Brand	Allen-Bradley
Part Number/Catalog No.	1769-PB2
Product Line	CompactLogix
Module Type	DC Power Supply Module
Input Power	24VDC
Shipping Weight	2 pounds
Shipping Dimensions	8 x 8 x 5 inches

Product Type:	I/O Power Supply
Certifications:	c-UL-us; CE; C-Tick
Wire size:	14 AWG (2.5 mm2 ) solid copper wire rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation max
Weight:	485 g (1.07 lb)
Dimensions (HxWxD), approx.:	118 x 70 x 87 mm (4.65 x 2.76 x 3.43 in.) height including mounting tabs is 138 mm (5.43 in.)
Fuse type:	Littelfuse 02153.15MXP; Wickmann 19195-3.15A
Inrush current, max:	30 A @ 31.2V DC
Current capacity @ 24V DC:	0.8 A
Current capacity @ 5V DC:	2.0 A
Power consumption:	7.5 W @ 60 °C (140 °F)
Input Voltage range:	19.2-31.2 VDC
Manufacturer	Rockwell Automation / Allen-Bradley
Power Supply Distance Rating	8; 8 I/O modules can be connected on either side of the power supply for a maximum of 16 module.

Part No : 1769-PB2

ALLEN BRADLEY

REQUEST QUOTE

Brand:	AUTOMATION PRODUCTS (PLC , HMI, DRIVES)
Condition:	Brand New
Quantity:	1
Status:	IN STOCK
Stock Location:	GHAZIABAD
Item Code:	85044090
Usage Application:	INDUSTRIAL
Power Consumption:	24 VOLT
Power Source:	Electric
Power Type:	DIRECT CURRENT
Material:
Automation grade:
Size:
Description:	Power Supply, CompactLogix, DC, 19.2-31.2V DC Input, 5V at 2 A or 24V at 0.8 A Output
