Product Details

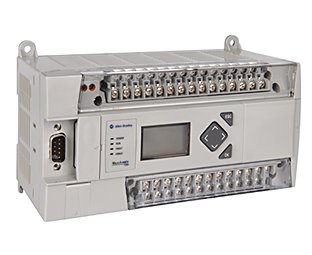

 MicroLogix 1400, 12 digital fast 24V dc inputs, 8 digital normal 24V dc inputs, 12 relays outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power

• Type - Controller
• Special Features - Built-in RTC, Online Editing, 6 HSC, Up to 7 Expansion I/O
• Input Signal - 120 V AC
• Output Signal - Relay
• Power Supply - 120/240V AC
• Embedded Analog - (4) Voltage Inputs / (2) Voltage Outputs
• Number Of Channels - 20 I/P, 12 O/P
• Communication - DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP
• Enclosure - IP20
• Display - Yes
• Memory - 20 KB
• Interface - Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports.
• Mounting - DIN Rail, Panel Mount
• Height - 90
• Width - 180
• Depth - 87
• Sub Brand - MicroLogix 1400
• Standard - c-UL-us CL1DIV2, CE, C-Tick, KCC
• Operating Temperature :- -20... 60 °C (-4...140 °F)
